Desription
Features:
bolted bonnet
Integral seal down
to remove seat
low-leakage test requirements to meet the stem packing
automatically adjust the preload gland packing
Application criteria:
Design: API 602/ASME 16.34/BS 5352/BS 6364
test: - API 598 pressure test at room temperature
- Low temperature test at SP 77/306
tag: MSS SP25

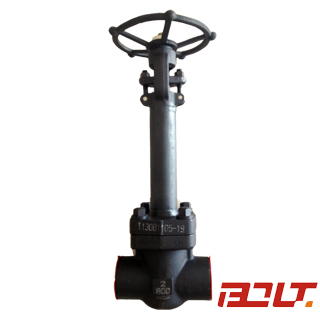

Long valve cover according to BS 6364
Connector
SW Socket welding ends according to ASME B16.11
BW butt end by ASME B16.25
NPT threaded connectors according to ASME B1.20.1
Flange end according to ANSI B16.5
Pressure rating
CLASS 800 (SW and NPT connectors)
CLASS 150 (BW and Flanged end)
CLASS 300 (BW and Flanged end)
CLASS 600 (BW and Flanged end)
CLASS 900
CLASS 1500
Size range
1 / 4 "to 2"
Description: 2 "above specifications, please contact the techniques taking a step forward
Optional Materials
Carbon Steel: LF2 ,LF3
Stainless Steel: F304, F304L, F316, F316L
