Forged Gate Valve

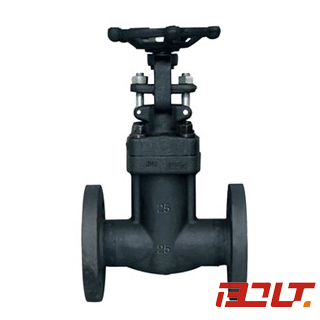

Bellows Sealed Forged Gate Valve

Please call: +86-577-57775222
Desription

Features:
bellows sealed to prevent leakage
Outside screw & Yoke(OS&Y)

Integral seal down
to remove seat
low leakage test stem packing by
automatically adjust the preload gland packing
Application criteria:
Design: API 602/ASME 16.34/BS 5352
Pressure Test: API 598
tag: MSS SP25
SW connector standard: ASME B16.11
threaded connector (NPT) Standard: ASME B1.20.1
Pressure rating
CLASS 150
CLASS 300
CLASS 600

CLASS 800
CLASS 900
CLASS 1500

Size range
1 / 4 "to 4"
Optional Materials
Carbon Steel: A105, LF2
Stainless Steel: F304, F304L, F316, F316L
Duplex: F51, F55
Alloy: F1, F5, F5A, F9, F11, F22
